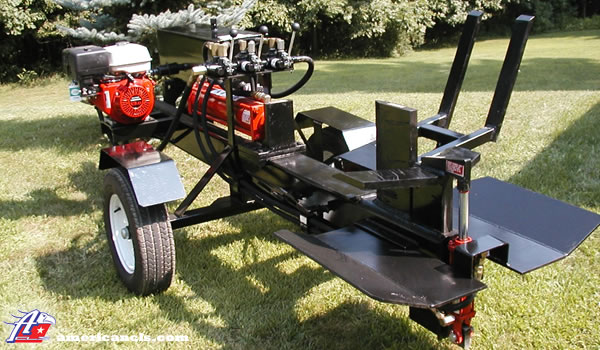

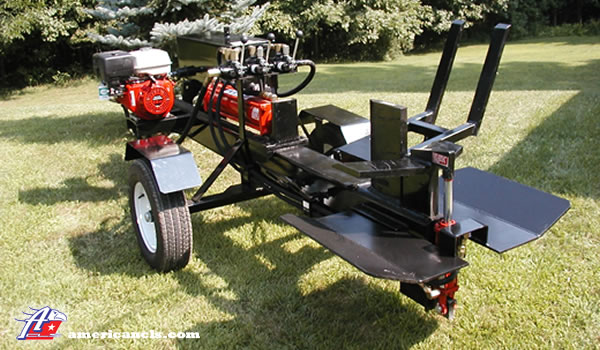

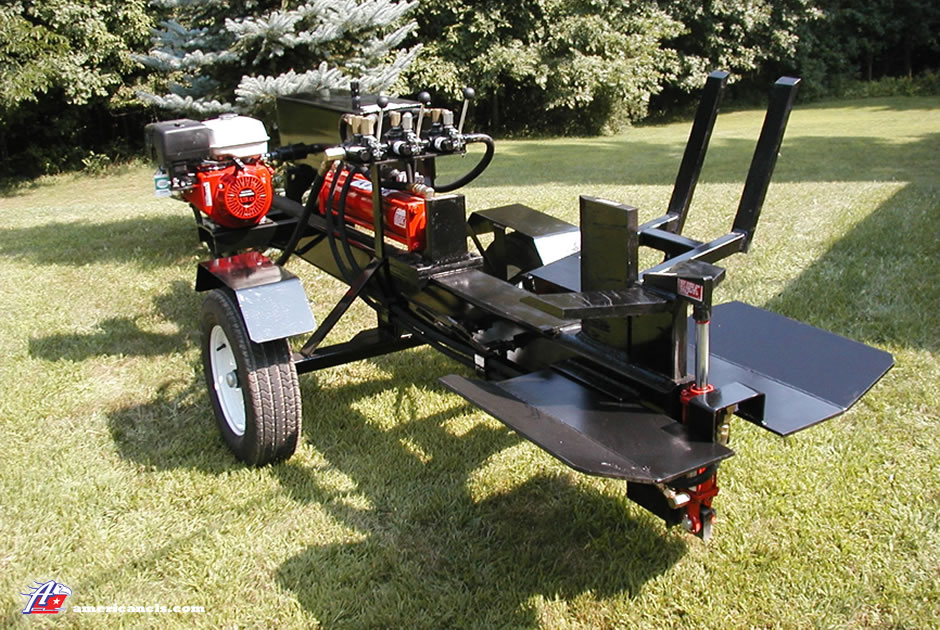

AM-26HW Hydraulic 4-Way

Hydraulic 4-Way

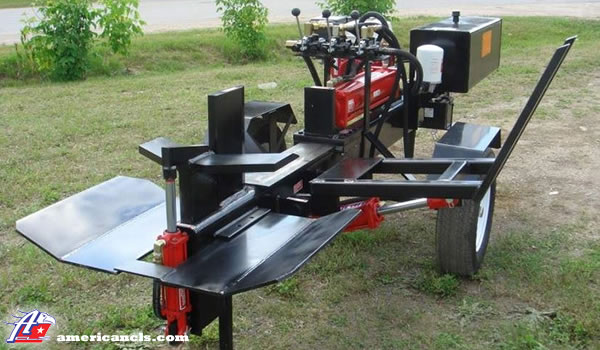

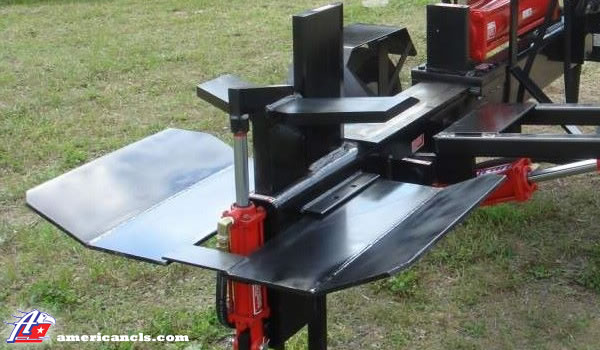

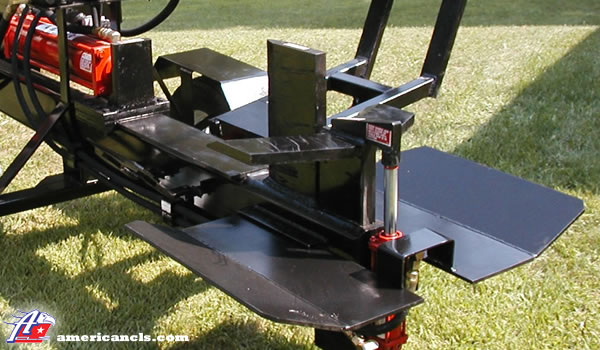

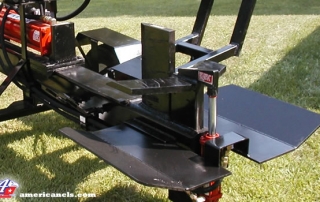

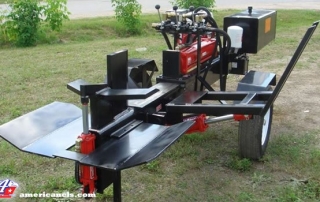

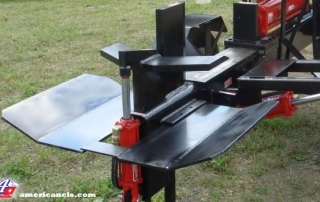

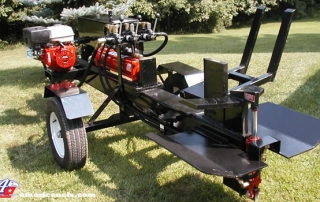

Our AM26HW-1322H combines a standard  12″ Tall Splitting Wedge with adjustable hydraulic wings.  These wings can be lowered out of site or used to create a 4-Way Splitting wedge. When the wings are out of site, this machine can tackle the nasty wood with the full force of the 5″ Diameter Cylinder and 22 GPM 2-Stage Pump. This machine comes standard with 3/8″ Thick Pans. The only option left is either an Electric Start 390GX Engine and/or Steel Fenders.

Photo Of Options

Working Height 25″
Cycle Time 9.8 Sec.
Cylinder 24″ X 5″ X 2″
Wedge Height 12″
Highway Tires 13″
 Fully Assembled Machine (LxWxH) 140″ X 46″ X 45″
Weight 1500 lbs.
Safety Chains Standard
Coupler For Towing 2″
Finish Powder Coat
Maximumn Log Opening 26″
Hydraulic System – Oil Included Yes

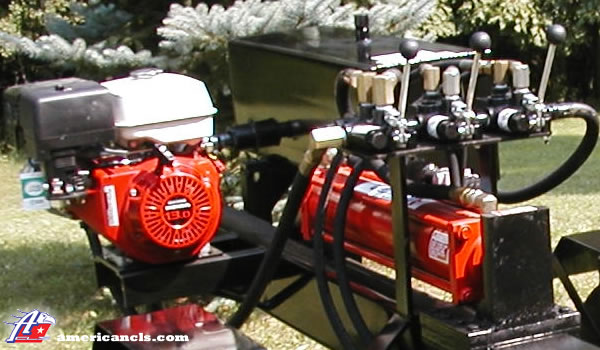

Engine Honda 390GX
